$17,000
- 1511 Center St, New Iberia, LA 70560
- support@kubotageneraldealership.com
- +1 (318) 383-4975

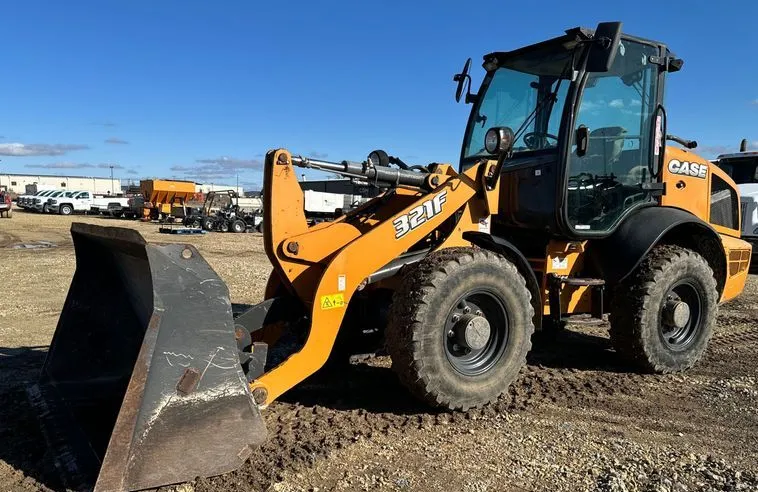

2016 Case 321F Wheel Loader
General Information:
Condition: Used
Year: 2016
Make: Case
Model: 321F
Hours: 2,780
Serial Number: FNH321FHNGP00024
Fuel Type: Diesel
Horsepower: 74 HP
Drive Type: 4WD
Transmission: Hydrostatic (2-Speed)
Engine Size: 3.4L (207 cu in)
Cylinders: 4
Engine & Performance:
Engine: FPT F5H FL463 A Diesel, Turbocharged
Emissions: Tier 4 Final (DOC-only, maintenance-free)
Rated RPM: 2,500
Torque: 233 lb-ft (316 Nm) @ 1,400 RPM
Travel Speed: 12.4 mph (20 kph) standard, 21.8 mph (35 kph) high-speed option
Bucket Breakout Force: 11,000 lbs (48.9 kN)
Lift Path: Z-Bar Linkage
Hydraulics & Lifting Capacity:
Hydraulic System: Open Center with Standard and High-Flow Auxiliary Hydraulics
Standard Flow: 22.5 GPM (85 L/min) at 3,626 psi
High-Flow Option: 34.3 GPM (130 L/min) at 2,901 psi
Lift Capacity at Full Height: 8,354 lbs (3,785 kg)
Rated Operating Capacity: 3,785 lbs (Z-Bar configuration)
Hydraulic Quick Coupler: Yes (Skid Steer-Compatible, Power Quick-Tatch)
Additional Hydraulic Features: Ride Control, Return-to-Dig, self-leveling bucket, 3-spool loader control valve, 3 diagnostic quick couplers
Attachments & Features:
Bucket: 82” General Purpose Bucket, Self-Leveling
Operator Station: Enclosed Cab (ROPS/FOPS Level 1) with Air Conditioning, Heat, and 7” LCD Multifunction Display
Bucket Controls: Joystick (Electro-Hydraulic, adjustable with ISO/H pattern option)
Additional Features: 20-degree oscillating rear axle, optional front/rear differential lock, creep speed mode (0–3.4 mph for attachments), auto ride control, keyless start, block heater, work lights, audible alarms (backup, caution, critical), indicator lights for operational status
Dimensions & Tires:
Transport Dimensions: 226.5” L x 79.7” W x 106.4” H
Transport Weight: 13,303 lbs (6,034 kg)
Wheelbase: 85.4” (2,170 mm)
Ground Clearance: 13.3” (338 mm)
Height to Bucket Hinge Pin: 136.7” (3,473 mm)
Max Dump Height: 113.8” (2,891 mm)
Turning Radius (Outside): 174.8” (4,440 mm)
Tire Size: 365/80R20
Tire Type: Pneumatic
—————————-
Buy with Confidence: we are so confident in the condition of our equipment that we offer a 10-day inspection policy and a 6-month warranty!
– Clean Title!
– Excellent Condition!
– Backed by our 6-month warranty!
– 10-Day Inspection Policy!
We also offer nationwide shipping at a competitive rate of $0.80 per mile. Our shipping service is handled with the utmost care, ensuring that your equipment arrives safely and in the same excellent condition in which it leaves our lot.
Whether you’re local or across the country, we’re committed to delivering the best equipment-buying experience possible. Reach out today and let us help you find your next equipment!
Contact us today for more information!!
