$8,800
- 1511 Center St, New Iberia, LA 70560
- support@kubotageneraldealership.com
- +1 (318) 383-4975

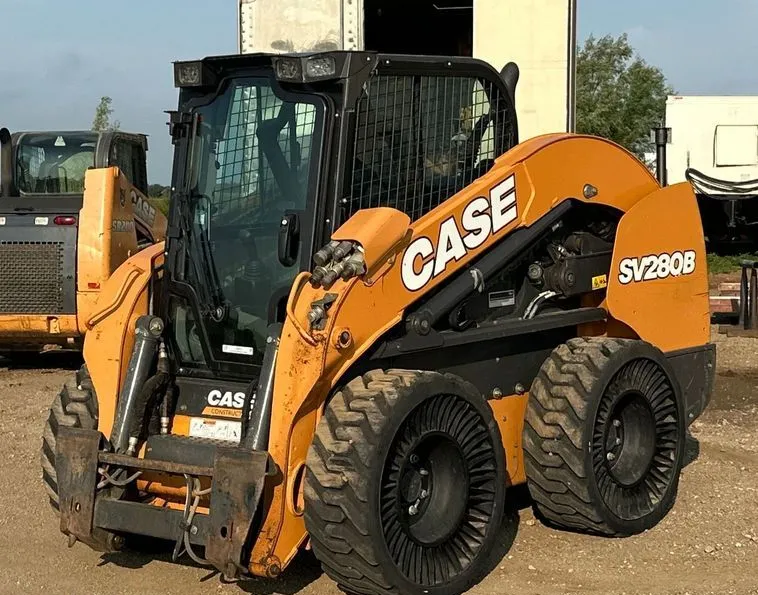

2020 Case SV280B Skid Steer Loader
General Information:
Condition: Used
Year: 2020
Make: Case
Model: SV280B
Hours: 1,112
Serial Number: NLM486577
Fuel Type: Diesel
Horsepower: 74 HP
Drive Type: Wheel
Transmission: Hydrostatic
Engine Size: 3.2L (195 cu in)
Cylinders: 4
Engine & Performance:
Engine: FPT F5HFL463A*F001 Diesel, Turbocharged
Emissions: Tier 4 Final (DOC-only, maintenance-free)
Rated RPM: 2,500
Torque: 232 ft-lbs (315 Nm) @ 1,400 RPM
Travel Speed: 7.2 mph (11.6 kph) single speed, 12.2 mph (19.6 kph) with 2-speed option
Bucket Breakout Force: 8,776 lbs (39 kN)
Lift Path: Vertical
Hydraulics & Lifting Capacity:
Hydraulic System: Open Center with Standard and High-Flow Auxiliary Hydraulics
Standard Flow: 24.2 GPM (91.5 L/min) at 3,050 psi
High-Flow Option: 37.6 GPM (142.3 L/min) at 3,050 psi
Rated Operating Capacity: 2,800 lbs (1,270 kg)
Tipping Load: 5,600 lbs (2,540 kg)
Hydraulic Quick Coupler: Yes (Power Quick-Tatch)
Additional Hydraulic Features: One-way self-leveling, Ride Control, auxiliary flow control in cab
Attachments & Features:
Bucket: Not specified (typically 72” or 78” Low Profile Extended with bolt-on cutting edge)
Operator Station: Enclosed Cab (ROPS/FOPS Level 1) with Air Conditioning, Heat, and 8-inch LCD Multifunction Display
Bucket Control: Hand (Electro-Hydraulic with ISO/H pattern changer)
Backup Camera: Yes (Operational in forward and reverse)
Auxiliary Electrical Outlet: Yes
Additional Features: Creep Speed Mode (EH controls), electronic monitoring system, keyless start, auto-idle shutdown, cab-wide rearview mirror, 360-degree lighting, deluxe cloth air suspension seat with 3-inch retractable seatbelt, cupholder, 12V power socket
Dimensions & Tires:
Transport Dimensions: 146.2” L x 70” W x 78.8” H (with bucket)
Transport Weight: 8,117 lbs
Width Over Tires: 70” (1,778 mm)
Tire Size: 12-16.5 NHS
Tire Brand: Michelin (Solid)
Ground Clearance: 8” (203 mm)
Height to Bucket Hinge Pin: 131.1” (3,330 mm)
Max Reach at Full Height: 29.7” (754 mm)
Wheelbase: 49.6” (1,260 mm)
—————————-
Buy with Confidence: we are so confident in the condition of our equipment that we offer a 10-day inspection policy and a 6-month warranty!
– Clean Title!
– Excellent Condition!
– Backed by our 6-month warranty!
– 10-Day Inspection Policy!
We also offer nationwide shipping at a competitive rate of $0.80 per mile. Our shipping service is handled with the utmost care, ensuring that your equipment arrives safely and in the same excellent condition in which it leaves our lot.
Whether you’re local or across the country, we’re committed to delivering the best equipment-buying experience possible. Reach out today and let us help you find your next equipment!
Contact us today for more information!!
