$16,000
- 1511 Center St, New Iberia, LA 70560
- support@kubotageneraldealership.com
- +1 (318) 383-4975

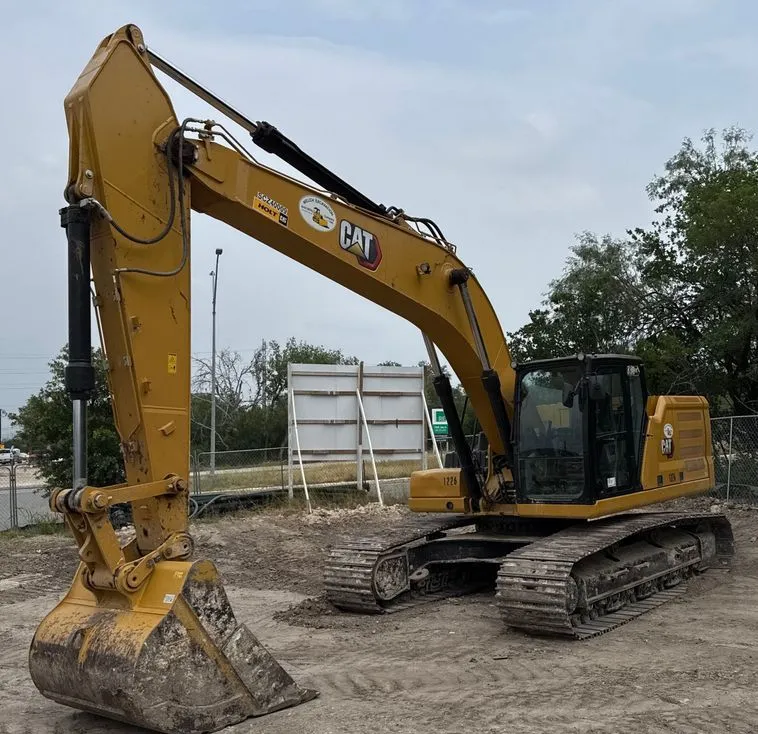

2023 Caterpillar 330GC Excavator
General Information:
Condition: Used
Year: 2023
Make: Caterpillar
Model: 330GC
Hours: 2,740
Serial Number: CAT00330VSCZ40009
Fuel Type: Diesel
Horsepower: 202 HP (151 kW, Net)
Drive Type: 2-Speed Crawler Track
Transmission: Hydrostatic
Engine Size: 7.01L (428 cu in)
Cylinders: 6
Engine & Performance:
Engine: Caterpillar C7.1 ACERT Diesel, Twin Turbocharged
Engine Serial: D8X02416
Emissions: Brazil MAR-1, equivalent to U.S. EPA Tier 3 and EU Stage IIIA
Rated RPM: 1,750
Travel Speed: 3.3 mph (5.3 kph) high, 2.0 mph (3.2 kph) low
Ground Pressure: 6.5 psi (44.8 kPa) with 31.5” tracks
Arm Breakout Force: 29,675 lbs (132 kN) with 10’ 6” stick
Bucket Breakout Force: 41,235 lbs (183 kN)
Swing Speed: 11.5 RPM
Fuel Consumption: Up to 12% less than 330D2 in similar applications
Hydraulics & Lifting Capacity:
Hydraulic System: Closed-Center, Load-Sensing with Standard Auxiliary Hydraulics
Pump Flow: 148 GPM (560 L/min) total
System Pressure: 5,075 psi (35 MPa) main, 5,511 psi (38 MPa) for heavy lift
Max Digging Depth: 23’ 9” (7.24 m) with 10’ 6” stick
Max Reach at Ground Level: 34’ 8” (10.58 m)
Max Dump Height: 23’ 2” (7.06 m)
Counterweight: 14,770 lbs (6,700 kg)
Hydraulic Quick Coupler: Yes (Caterpillar)
Attachments & Features:
Bucket: 60” Caterpillar Heavy Duty Bucket, 2.3 cu yd Capacity, 7 Teeth
Boom: Standard Reach, 20’ 2” (6.15 m)
Stick Length: 10’ 6” (3.2 m)
Operator Station: Enclosed Cab (ROPS, ISO 12117-2:2008) with Air Conditioning, Heat, Backup Camera, and 8” Touchscreen Monitor
Additional Features: Pattern changer (ISO/Backhoe), Cat Grade with 2D, Payload, Lift Assist, auto hydraulic oil warm-up, Smart Mode for automatic power adjustment, VisionLink® telematics, auto-reversing cooling fans, two-level fuel filtration, LED work lights, Bluetooth radio, Operator ID with push-button start
Dimensions & Tracks:
Transport Dimensions: 34’ 1” L x 10’ 5” W x 10’ 5” H (10.39 m x 3.19 m x 3.18 m)
Transport Weight: 67,460 lbs (30,600 kg)
Track Width: 31.5” (800 mm)
Track Type: Steel, Triple Grouser
Track on Ground: 13’ 1” (3.99 m)
Ground Clearance: 18.9” (480 mm)
Tail Swing Radius: 9’ 8” (2.94 m)
—————————-
Buy with Confidence: we are so confident in the condition of our equipment that we offer a 10-day inspection policy and a 6-month warranty!
– Clean Title!
– Excellent Condition!
– Backed by our 6-month warranty!
– 10-Day Inspection Policy!
We also offer nationwide shipping at a competitive rate of $0.80 per mile. Our shipping service is handled with the utmost care, ensuring that your equipment arrives safely and in the same excellent condition in which it leaves our lot.
Whether you’re local or across the country, we’re committed to delivering the best equipment-buying experience possible. Reach out today and let us help you find your next equipment!
Contact us today for more information!!
